Asycube from Asyril. Sold and supported across Scandinavia.
Detab Ecomat Automation is Asyril's partner for the flexible robot feeder Asycube. We help you from the first test to a finished cell, with local support and a demo center in Jönköping where you can try your own parts.
0.1–150 mmpart size3 axespatented vibrationUp to 4parts at once
The partnership
Swiss precision with a local presence
Asyril develops and manufactures the feeders. Detab sells, integrates and supports them for customers in Sweden, Norway and Denmark.
Switzerland
Specialist in flexible feeding
Develops Asycube with patented 3-axis vibration
Complete system: feeder, EYE+ vision control and Asyfill hopper
Present in over 35 countries, ISO 9001 and ISO 14001
+
Sweden
Expert in vibratory feeding and automation
Deep knowledge of part feeding, from bowl feeders to robot cells
Sales, integration and service across Scandinavia
Demo center in Jönköping for tests with the customer's parts
For you, this means one contact for the whole solution: the right Asycube model, platform, vision and robot integration, with local support and a short path to help.
A traditional bowl feeder is built for a single part. Asycube spreads and flips parts with vibration and lets a camera find the ones the robot should pick. Change part by changing recipe.
Patented 3-axis vibration
Parts can be moved in every direction on the platform. This gives even spreading, no build-up in the corners and less recirculation.
Fast changeovers
New parts are run by loading a new recipe. The platform is changed without tools, which shortens the setup time between production runs.
Built-in vision with EYE+
EYE+ finds the parts, sends pick coordinates to the robot and controls the vibration. No prior machine vision knowledge required.
Works with most robots
Communicates with robots and PLCs via TCP/IP and Modbus TCP and supports common fieldbuses. Fits new and existing cells.
Many parts, one feeder
From 0.1 mm components to 150 mm housings. With EYE+, up to four different parts can be fed at the same time.
Gentle handling
Frequency and amplitude are controlled precisely, so even fragile and surface-sensitive parts are handled with care. Selectable platforms: smooth, textured, grooved or perforated.
Model range
The right size for your parts
Five sizes cover parts from 0.1 to 150 mm. The ranges overlap, so there are often two options to choose between.
The scale is logarithmic so that both the smallest and largest parts are visible. Source: Asyril product data.
Also
Asycube Clean 230 for cleanrooms, pharmaceuticals and other hygiene-sensitive environments. Easy to clean and built for GMP requirements.
The whole chain
From bulk to picked part
Asycube is the heart of a complete feeding system. We deliver and commission every part.
STEP 1
Asyfill hopper
Refills parts in the right amount, controlled by the system.
STEP 2
Asycube
The vibration spreads and flips the parts on the platform.
STEP 3
EYE+
The camera finds pickable parts and sends coordinates.
STEP 4
Robot
The robot picks and places. Any robot brand.
Demo center Jönköping
Test with your own parts before you decide
At our premises in Jönköping we have a demo center with Asycube, vision and robot. There we try your parts under real conditions so you know what the solution can handle before you invest.
Detab Ecomat Automation AB Demo center, Jönköping

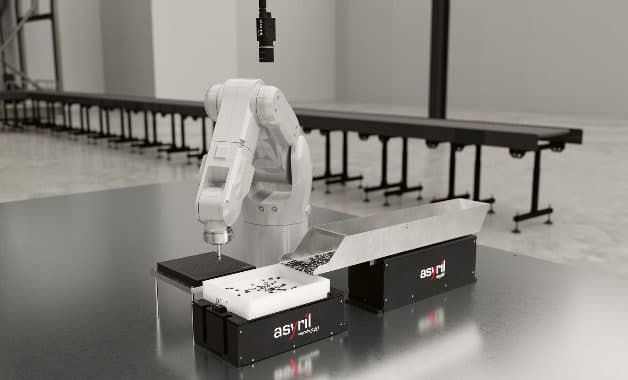

Asycube with Asyfill hopper, camera and robot. Image: Asyril
1
Send or bring parts
Give us a selection of your parts and tell us the desired rate and how they should be picked.
2
We choose model and platform
We test size, platform surface and vibration recipe for your specific parts.
3
See the result on site
Visit us and watch the test live, or get a summary with results and a recommendation.
4
From test to production
Once you are satisfied, we take the solution on to integration, commissioning and service.
We are happy to tell you more about how flexible feeding can simplify your production. Do you have a part that is hard to feed? Send it to us and we will test it in Jönköping.
