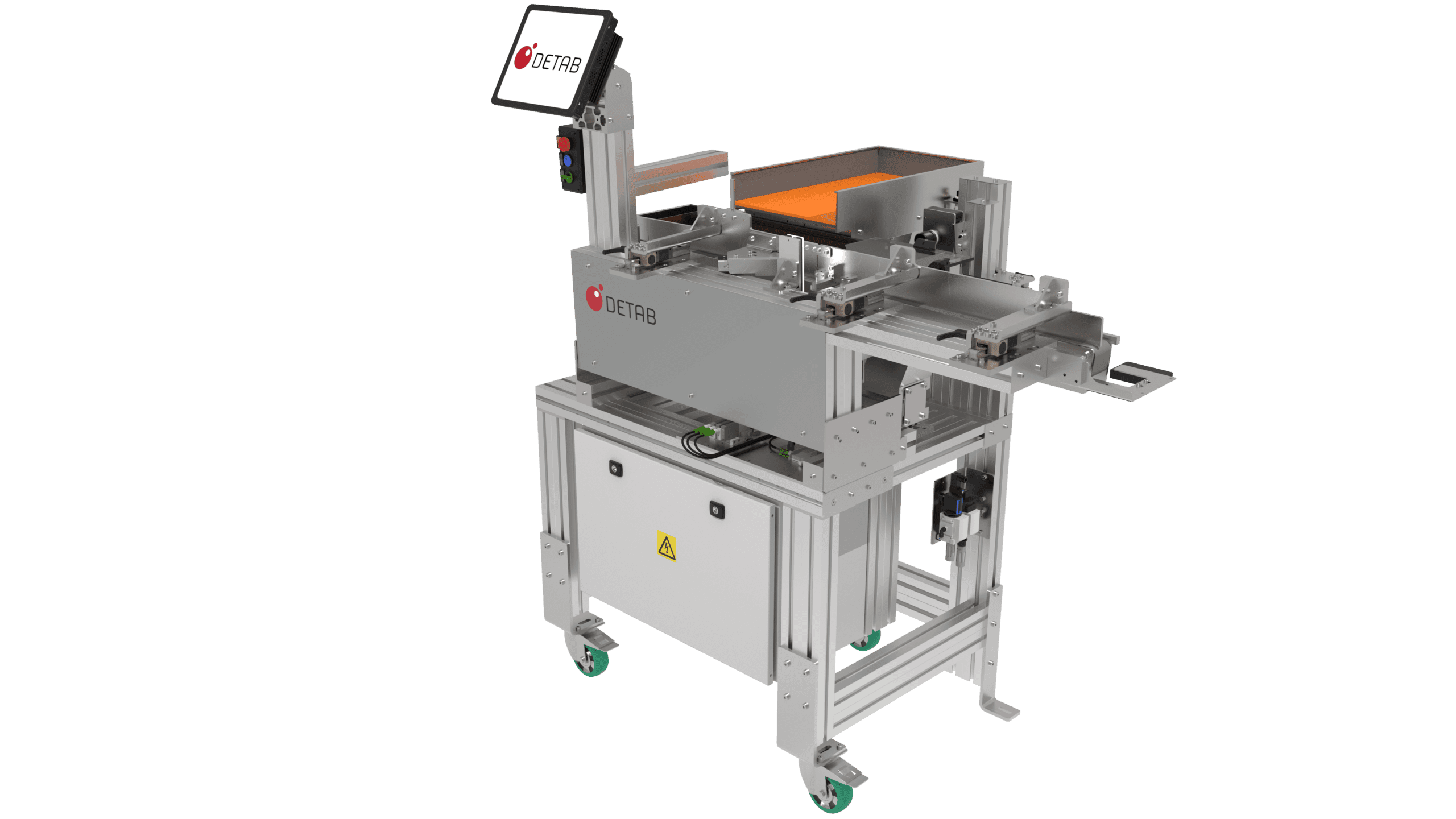

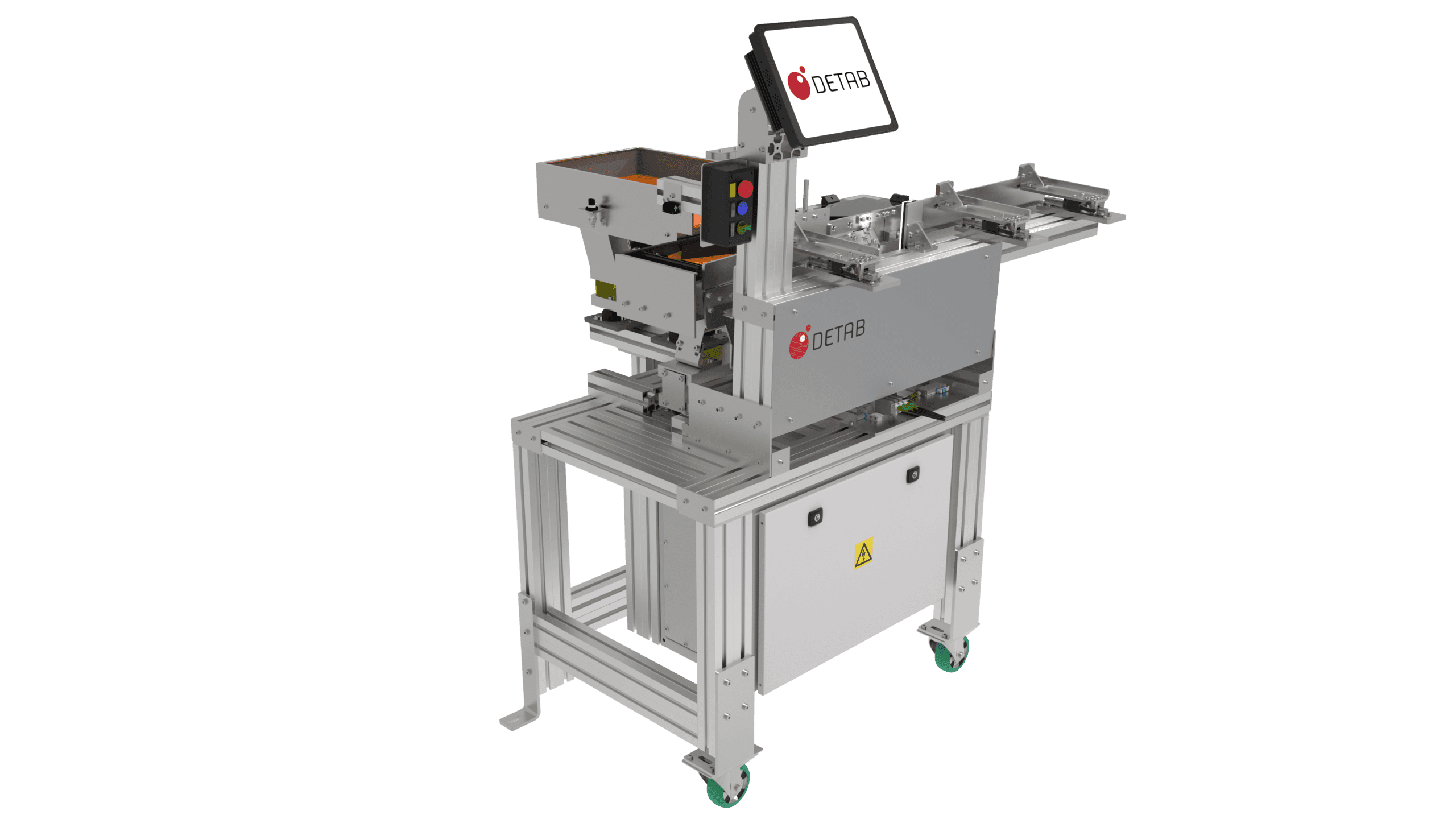

DG FlexFeeder 601

Flexible feeder for small and medium-sized components

Welcome to the future handling of small components with the DG FlexFeeder 601! With this innovative vibratory feeder, you elevate your production flow to new heights with key advantages that no one else can match. The DG FlexFeeder 601 is not only Detab’s smallest vibratory feeder – it is specifically designed to handle the tiniest components with great precision. Perfect for details ranging from 1-50 mm, this powerful machine ensures that no component is too small to be managed smoothly and efficiently. One of the most impressive features is the gentle technology that can be applied to all materials. Whether your components are delicate, sensitive, or made of different materials, the DG FlexFeeder 601 can handle them without any risk of damage. This makes it an incredibly versatile and adaptable machine suitable for all imaginable applications.

Product information

Technical details

Footprint

1.4m²

Machine weight

265kg

Voltage

230-400V, 50Hz

Air pressure

6 bars

Energy consumption

Max 500W

Std. output height

1050mm

Features

  • Standardized to handle a wide range of components
  • Designed for easy handling and use with quick changeover
  • Low cycle times and the possibility of feeding with orientation
  • Optimized for handling fragile products
  • Provides one of the quietest feeder solutions on the market

Typical details

  • O-rings
  • Sealing element
  • Gaskets
  • Screw-nut
  • Screws
  • Bolts
  • Plastic plug
  • Dowel
  • Springs
  • Bushings
  • Complex geometries
  • Perfect for details that are 1-50mm
